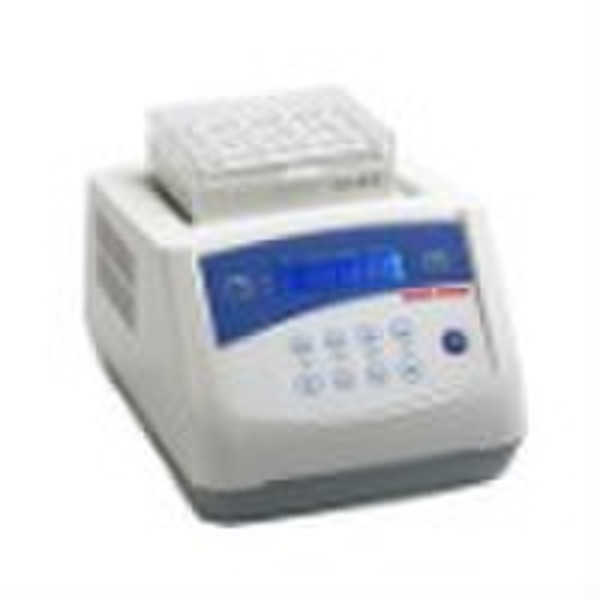

Shaker Incubator for Microtubes

Designed for simultaneous heating and cooling and mixing of small samples, theMSC-100 are supplied with interchangeable platforms for microtubes. Mixing and heating and cooling modes can be used both simultaneously and independently, i.e. the device can work as a shaker and as a thermostat. The main body of the Mixing Block can be used with different kinds of blocks. Features 1. LCD display. It easy to setup and use. 2. Accurately control and display time, temprature and speed 3. Over heating protection device ensures safety & reliability 5. Temperature can be calibrated to meet user's needs. 6. Low noise working even under the speed of 1,500rpm 7. Conforms to CE safty standard 8. Custom blocks are available to satisfy experimental requirement 9. Gental, reliable mixing with long-life direct current motor Specification 1. Temp. Setting Range: 0 100oC 2. Temp. Control Range: 0 100oC 3. Timing Range: 1 min 99h59min 4. Mixing Speed: 200rpm-1500rpm 5. Mixing Orbit: 2mm 6. Temp. Control Accuracy: ± 0.5oC 7. Display Accuracy: 0.1oC 8. Heating Time: ≤20min (from 20oC to 100oC ) 9. Cooling time: ≤25min (fromambient to ambient - 20oC ) ≤15min (from 100oC to 20oC ) 10. Cooling depth: 1) The block temperature can be descendedto 0oC if the ambient temperature is20oC 2) The block temperature can be descendedto 4oC if the ambient temperature is25oC 3) The block temperature can be descendedto 10oC if the ambient temperature is30oC 11. Cooling and Heating Parts: TE Module 12. Supply Power: AC220V 50/60Hz or AC120V 50/60Hz 13. Dimension ( LxWxH) mm: 300x220x170 14. Net Weight: 8.5 kg Blocks for MSC-100 TypeParameterMax. TempMax. SpeedRemarkA96×0.2ml1001500B54×0.5ml1001500C35×1.5ml1001500D35×2.0ml1001500E15×0.5ml+20×1.5ml1001500F24×Dia.≤φ12mm tube1001200G12×15ml Falcon tube100750H6×50ml Falcon tube100750I103×67×30 Water bath block1001500J96×0.2ml plate1001500
