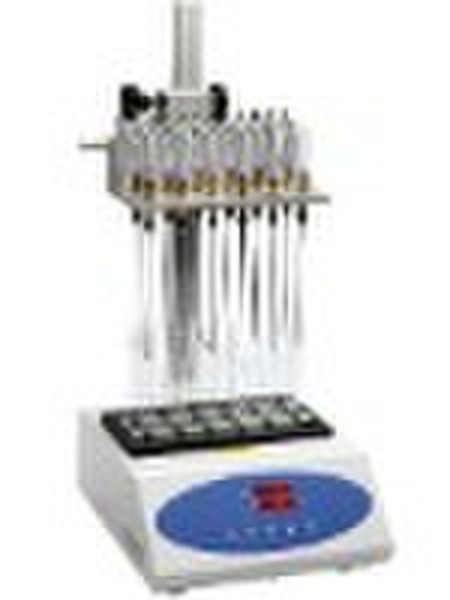

Sample Concentrator

The instrument consists of a base and stand assembly, sample holder and gas distribution system. Test tubes are held in a bolck . The gas at 5 to 10 psig passes through the distribution manifold. Depending on the test-tube size and solvent volume they can be individually raised or lowered to the correct height. Needles or glass pipets blow gas onto the surface of the solution resulting in rapid evaporation of the solvent. All materials used are laboratory quality and can withstand contact with organic solvents. Acid resistant models are available for corrosive applicationFeatures 1. High precision and wide range of temp control 2. Blowing a large number of samples at one time 3. Blowing each sample independently 4. Amount of airflow can be adjusted 5. Easy operation; safe and reliable to use Specification 1. Temp. range: room temp. +5oC 150oC 2. Temperature control discrepancy: <= ±1oC (RT+5oC 100oC) <=±1.5oC (100oC 150oC) 3. Low Nitrogen consumption of 330ml/min/sample 4. Time required for temperature to increase from 40oC to 150oC: <=30m minutes 5. Maximum input power: 400W 6. Temp. control discrepancy: ± 0.1oC 7. Dimensions: 280W x240D x 500H 8. Net weight: 7Kg 9. All units will fit and are recommended to be used in a bench-top.ventiated hood 10. Needles length: 150mm Blocks for KD200 TypeParameterCapcityDimensionBD0110mm12192x 96 x 49BD0212mm12192x 96 x 49BD0313 mm12192x 96 x 49BD0415 mm12192x 96 x 49BD0516 mm12192x 96 x 49BD0619 mm12192x 96 x 49BD0720mm12192x 96 x 49
